Product details
The world is rapidly adopting and implementing smart meter solutions, which offer significant benefits for both users and utility companies. Smart meters enable users to manage their energy consumption according to their needs, fostering greater efficiency and cost control. On the other hand, utility companies can monitor and manage electricity connections, preventing non-payment issues and regulating the maximum demand of customers. This ultimately helps stabilize the electricity distribution system.
A key component in ensuring the proper functioning of these systems is the “Latching Relay”. This vital device enables precise control of the smart meter's operations, managing everything from customer demand to energy connection control.
Applicable standard for Latching Relay testing
IEC 62055-31 : 2022
IEC 62052-31 : 2015
IS 15884
IS 16444: 2015
Product parameters
Product Introduction

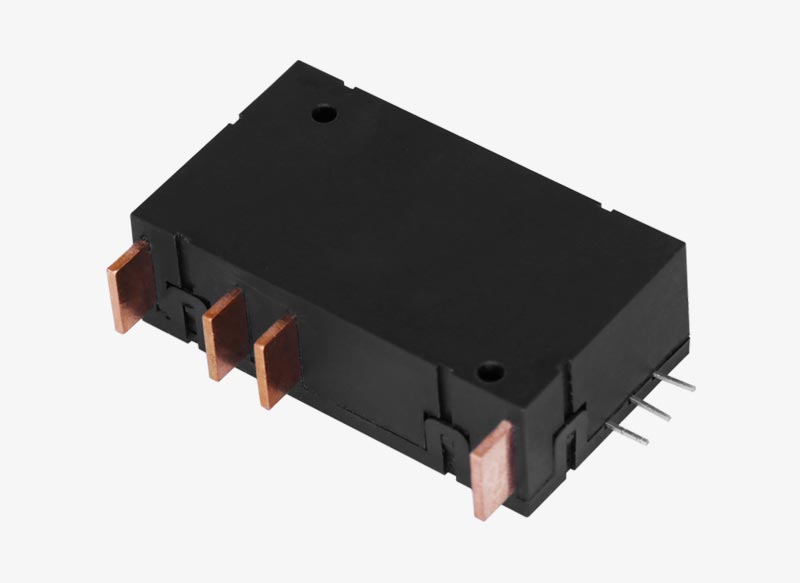

IM901 1-phase & IM901D 2-phase& IM901T 3-phase latching relays are magnetic latching relays with MAX current up to 90A, and switching 90A 250VAC. Single and Double coil type. Widely Used in smart meters, EV chargers, street lighting control systems, and industrial automation.
Compared with similar products on the market, IM901D 2P's advantages are the following 2 points:
1. Price: best cost-effective, bulk price≤ 1.98USD, unit price< most similar relays on the market
2. Low contact resistance: 100% Guaranteed ≤0.8mΩ, Batch testing: 0.3mΩ
IM901 IM901D IM901T 90A 1P 2P 3P Latching Relays
Small size, big switching power, and low consumption
Coil instantaneous pulse driving and without fever
Stable permanent magnet force and save energy
low contact resistance, working stable and reliable, anti-vibration and anti-shock.
Use manganin welding, low material temperature coefficient, and compact structure.
4kV dielectric strength between coil and contacts
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
RoHS compliant materials and process
IEC62052-31 UC2/UC3 standard
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter

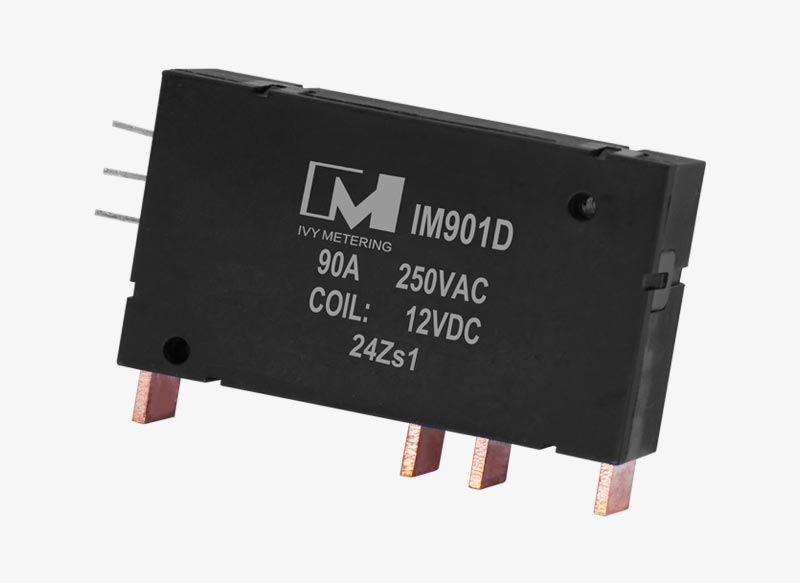

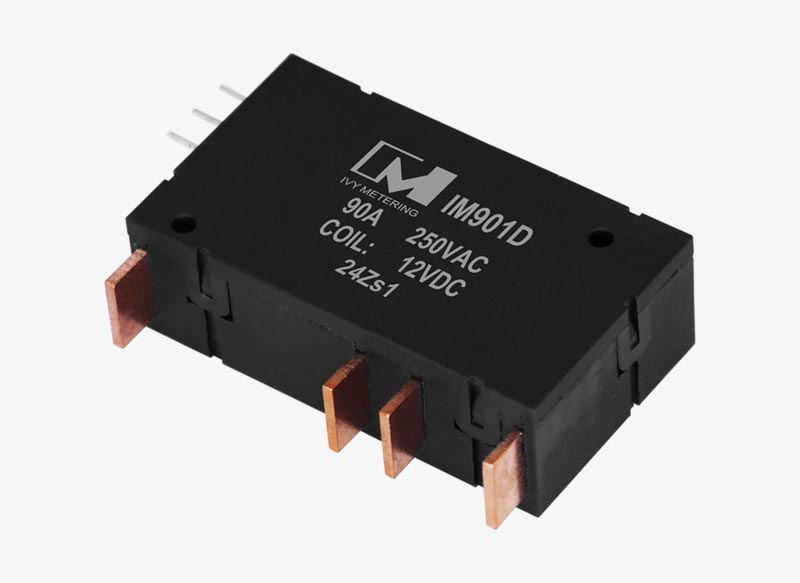

IM901D Product Parameters
Contact Form: 2A/B
Contact Material: AgSnO2
Max. Switching Voltage: 250VAC
Max. Switching Current: 90A
Max. Switching Power: 22500VA
Coil Voltage: 6~48VDC
Contact Resistance：≤0.8mΩ
Pick-up Time： 30ms
Release Time： 30ms
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise： ≤55K When Ambient 40℃
