IVY Latching Relay
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.
IM1201 is a small industrial bistable latching power relay with continuous current up to 120A, and switching 120A 250VAC. Single and Double coil latching. Used in utility meters and for solar, EV charger and energy conservation.

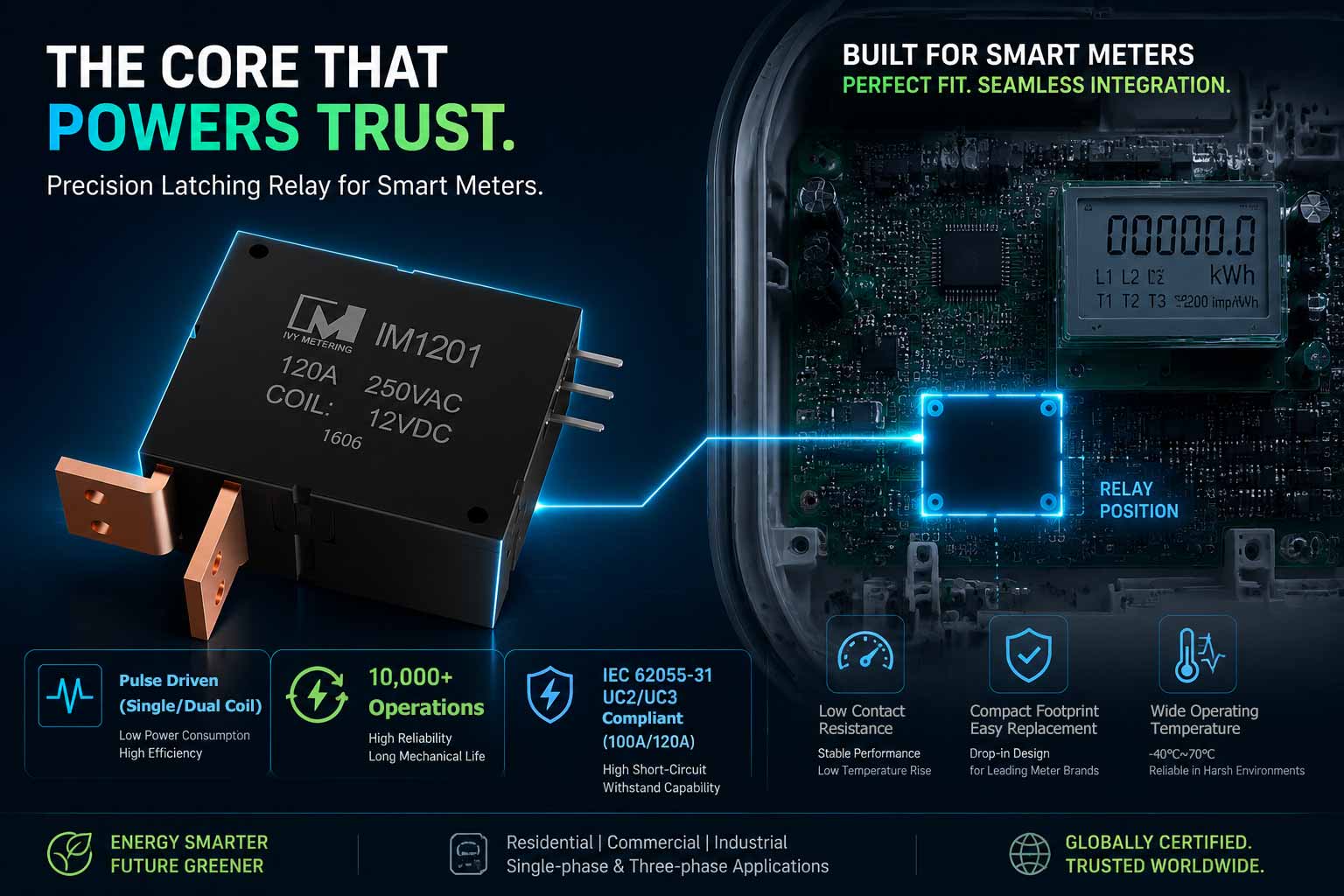

IM1201 120A High Power Magnetic Latching Relay
Meet to IEC62055-31-2005—UC2 UC3
Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.
According to RoHS requirements
Large switching power with mini body
Big strength of magnetic latching power, anti-shock of vibration
Pulse drive,economy of power consumption and no heat rising
Permanent magnetic strength to keep stability,and save power consumption
Small contact resistance ,and little self-consumption with reliable working
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

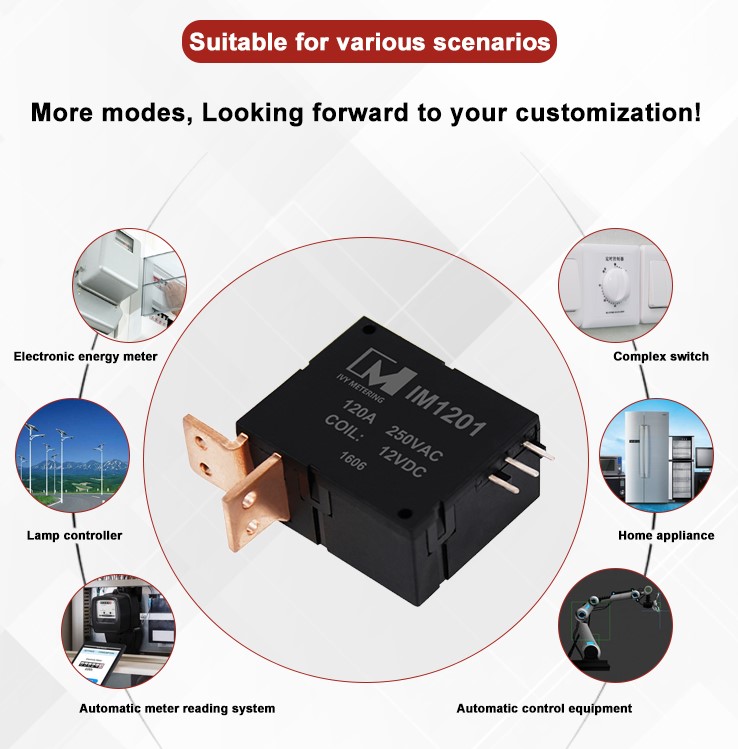

Application Cases
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter
Product Parameters
Rated Load: 120A 250VAC
Contact Form: 1A/B
Rated Coil Consumption: 2.0 / 4.0W(30ms)
Contact Material AgSnO2
Compact Size: 42*35*21.5mm
Max. Switching Voltage: 250VAC
Max. Switching Power: 33240VA
Contact Resistance: <2mΩ
Pick-up Time: 30ms
Release Time: 30ms
Electrical Endurance: 5000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise: ≤55K When Ambient 40℃
Ambient Temperature: -40℃~70℃
Ambient Humidity: 45%~90%RH
