Product parameters
1. Product Introduction

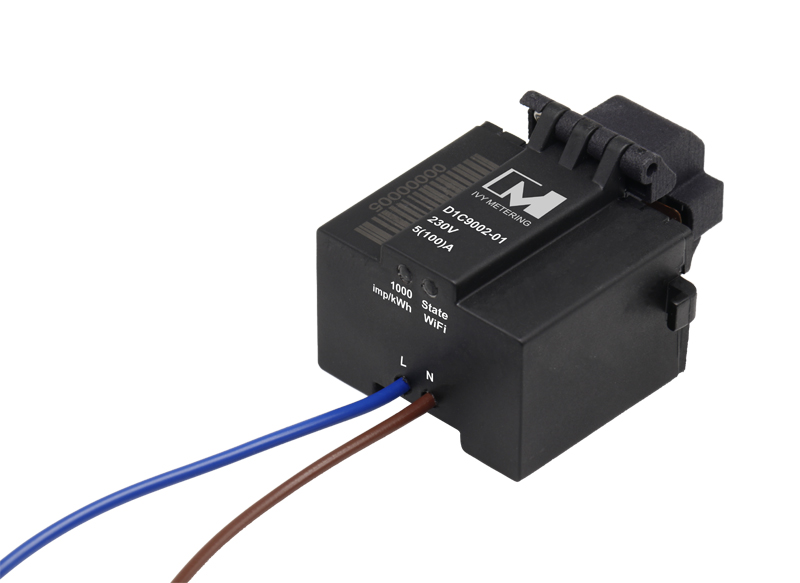

The D1C9002-01 is the next-generation cost-effective smart electricity sensor with Wi-Fi and Bluetooth communication. With its multi-parameter measurement capabilities, the D1C9002-01 can be used for energy monitoring in a variety of application scenarios, including energy management, smart buildings, industrial equipment, IOT, and electric car charging stations.
It has the characteristics of high precision, stable performance, small size, and easy installation. It is suitable for measuring and monitoring electrical parameters such as voltage, current, power, and power factor. It can read electrical parameters in real time and actively report data.
2. Main features
Wireless transmission: Supports WiFi/Bluetooth communication, convenient data transmission, and no wiring required.

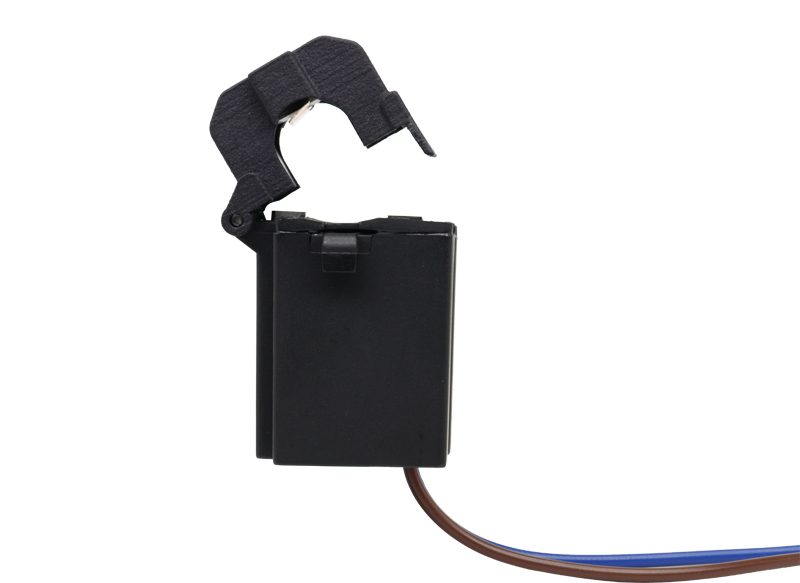

Easy installation: The split-core structure, easy to disassemble, but need to turn off the power.
Remote Monitoring: Current/voltage/power/frequency data can be viewed anytime, anywhere via the network.

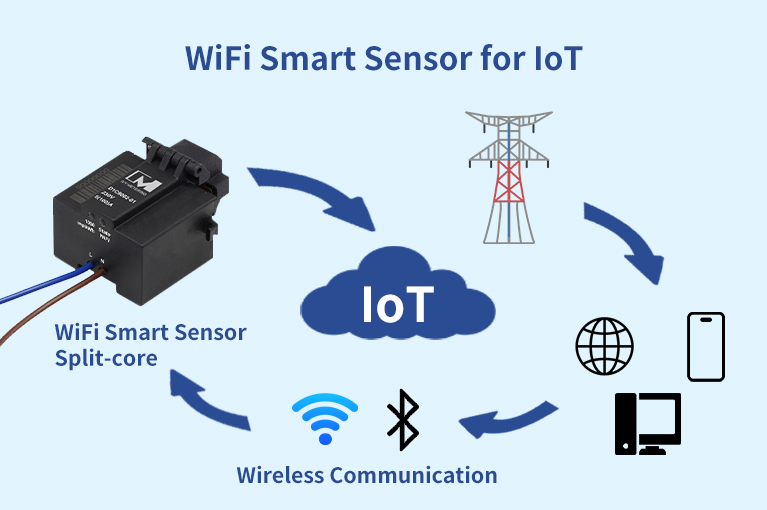

Data Reporting: Data can be reported to the cloud platform via Modbus and other protocols
Bidirectional Measurement: Measures forward and reverse current and power.
3. Technical parameters
Voltage input: 230V (±20%)
Current: 10(100)A
Starting current: 0.04%Ib(4mA)
Minimum current: 5%Ib(500mA)
Pulse constant: 1000imp/kwh
Measurement accuracy: 2%
Rated frequency: 50~60Hz
Threading hole diameter: ≤φ12mm
Temperature range: -20 ~ +60℃

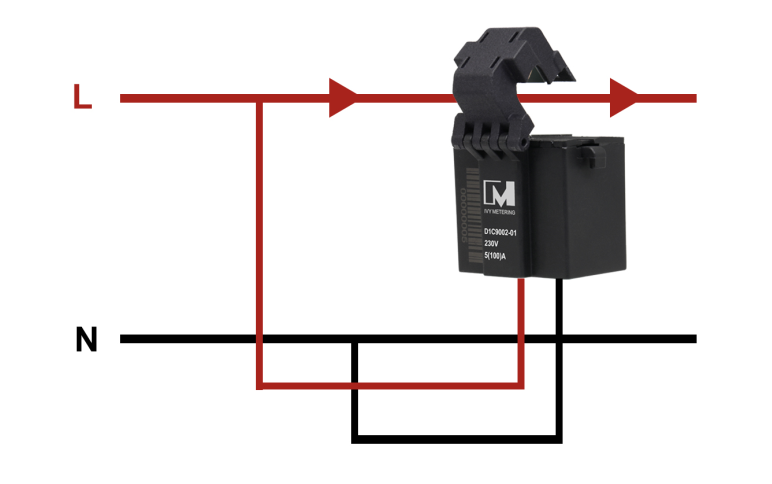

4. Product Wiring
5. Product Application
Smart home: monitor the power consumption of home appliances and realize intelligent power management.
Industrial automation: used for current monitoring of AC motors, lighting equipment, air compressors, and other equipment to achieve predictive maintenance
Energy management: monitor power consumption and optimize energy use in smart grids and building automation systems
EV Charger: measure the current output by the charging pile in real time and accurately, providing accurate data for billing and electricity management.
