IM801D Customized 80A 250VAC Dual Coil 24V 2 Pole Bistable Latching Relay for Smart Energy Meter

Share :
Product parameters

Prouduct Details

Latching relay is a new type of relay which uses magnetic principle to control circuit's on and off. Its normally open and closed state are provided completely by permanent magnet steel'working and completed the conversion of on-off state base on the triggering of a certain width pulse signal.

We are a leading Supplier of Latching Relay for Energy/Smart Meters - IVY. We are supplying latching relays, magnetic latching relays, 90A latching relays, 120A latching relays, 80a latching relays, 60a latching relays, magnetic relays, 80a latching relays with two pole, 100a latching relays, photovoltaic relays, home appliances relays, solar relays, dc power relays, meter relays and many more.

IM801D is 80a dual poles latching relay, which is a magnetic latching relay with stable performance and long service life. The high power latching relay has following characterristics: Cost Efficiency & Surge Protection; Single Coil/Double Coil Optional; External Shielding Case Available; RoHS Compliant Materials and Process; Custom Assemblies with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals. As a miniature type contactor relay, it also pass IEC62055-31 UC2 Certified. This 80a 250vac duoble pole relay is also widely used in Smart Meter, Lighting Control, UPS Control, EV Charging Station, Solar PV System, Automotive System and Industrial Equipment.

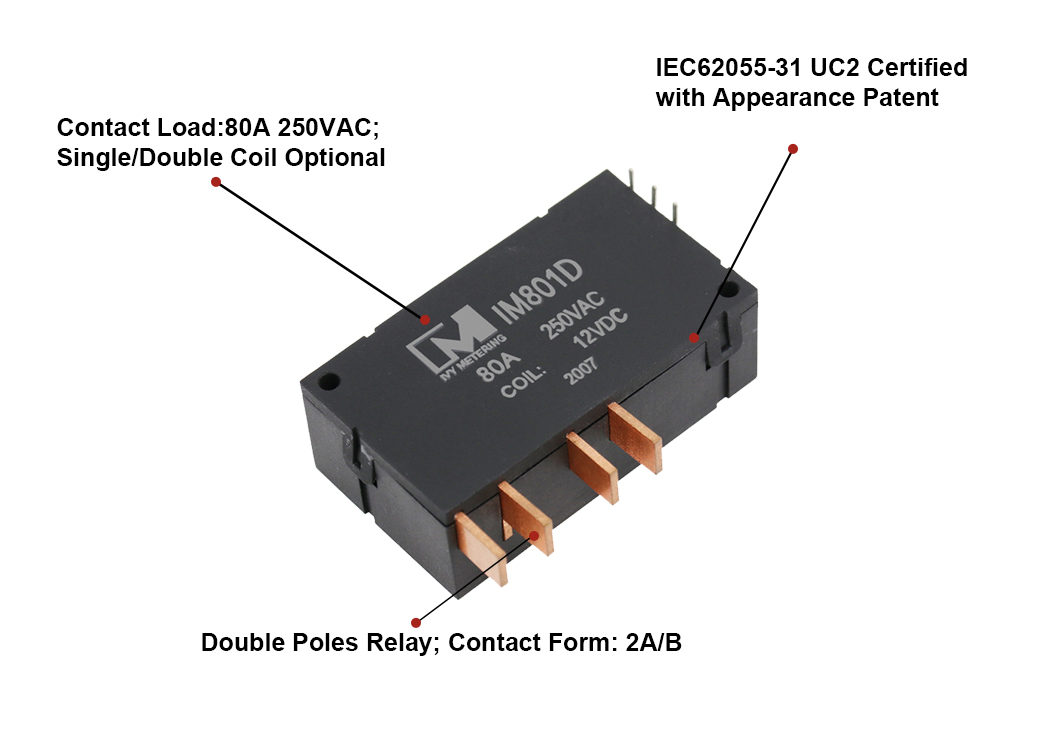

The main characteristics of IM801D double way control latching relay as follow:

Contact Load: 80A 250vac; Single/Double Coil Optional

Double Poles Relay; Contact Form: 2A/2B; Coil Voltage:6~48VDC

IEC62055-31 UC2 Certified with Appearance Patent


IM801D 80A Double Poles Latching DC Relay 12V for Smart Home Lighting Control

Product Parameters

Rated Load: 80A 250VAC

Contact Form: 2A/B

Rated Coil Consumption:  2.0/4.0W(30ms)

Dielectric Strength: 4kV

Compact Size: 62.8*35*21.8mm

Contact Material: AgSnO2

Max. Switching Voltage: 250VAC

Max. Switching Power: 20000 VA

Contact Resistance: <1.0mΩ

Pick-up Time: 30ms

Release Time: 30ms

Electrical Endurance: 10000 Cycles

Mechanical Endurance: 100000 Cycles

Ambient Temperature: -40℃~70℃

Ambient Humidity: 45%~95%RH
